ALSGS - AL-310S (X/Y/Z) Power Feed
R0.00
Price incl. VAT (15%) R0.00
Type
In stock
1

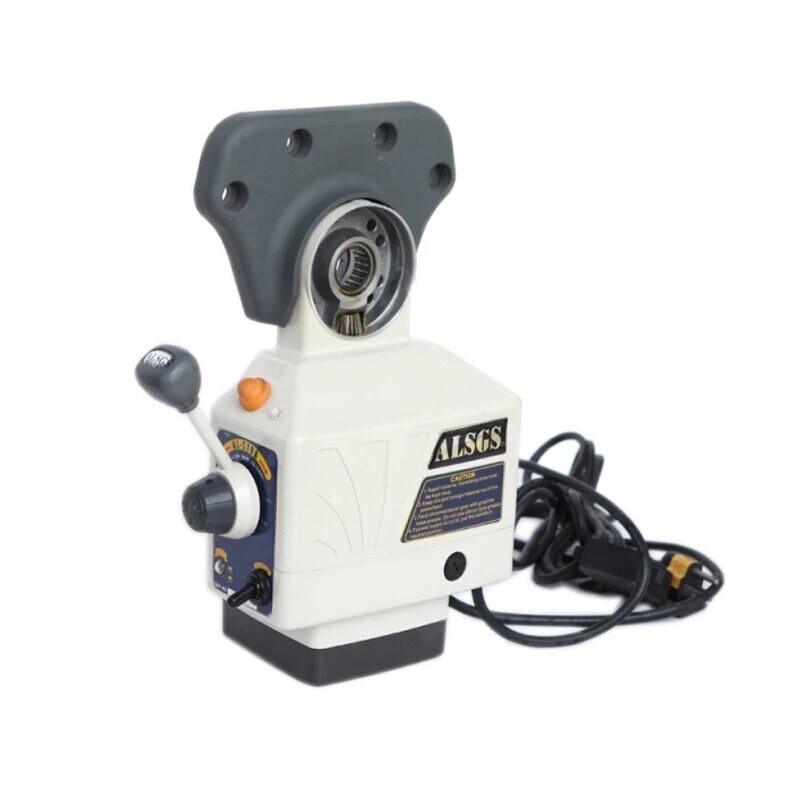

ALSGS - AL-310S (X/Y/Z) Power Feed
Product Details
Brand: ALSGS
This is a classic model attached to the ball screws of Milling machines, Drilling machines, and Turret Machines to provide an accurate, repeatable feed rate.
| AL-310S Series Parameters | |||
| Project value | AL-310SX | AL-310SY | AL-310SZ |
| Input voltage | 110V（220V Optional） | 110V（220V Optional） | 110V（220V Optional） |
| Power | 95w | 95w | 95w |
| Maximum torque | 450in-lb | 450in-lb | 450in-lb |
| Speed range | 0-200rpm（CVT） | 0-200rpm（CVT） | 0-200rpm（CVT） |
| Plug system | American(British European Optional) | American(British European Optional) | American(British European Optional) |
| Dimensions L/W/H |
30/22/35cm | 30/22/35cm | 30/22/35cm |
| Total weight | 7.2Kg | 7.2Kg | 7.2Kg |
| Packaging form | PVC bag+ Shock foam+carton | PVC bag+ Shock foam+carton | PVC bag+ Shock foam+carton |
| Applicable models | Milling machine, Drill milling machine, Turret milling machine | Milling machine, Drill milling machine, Turret milling machine | Milling machine, Drill milling machine, Turret milling machine |
| Installation position | X-axis | Y-axis | Z-axis |
INSTALLATION METHOD:
- AL-310s X (http://www.alsgs.com/xinwen/wenti/69.html)
- AL-310s Y (http://www.alsgs.com/xinwen/wenti/101.html)
- AL-310s Z (http://www.alsgs.com/xinwen/wenti/71.html?16191518...)
You May Also Like

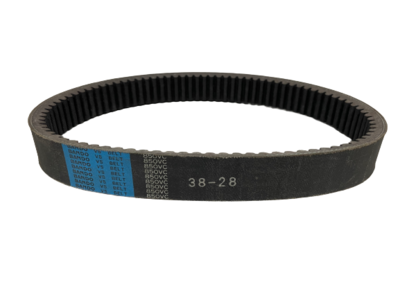

![BANDO -[850VC3828]- VARIABLE SPEEND BELT](https://d2j6dbq0eux0bg.cloudfront.net/images/80107771/3499432553.png "BANDO -[850VC3828]- VARIABLE SPEEND BELT")
