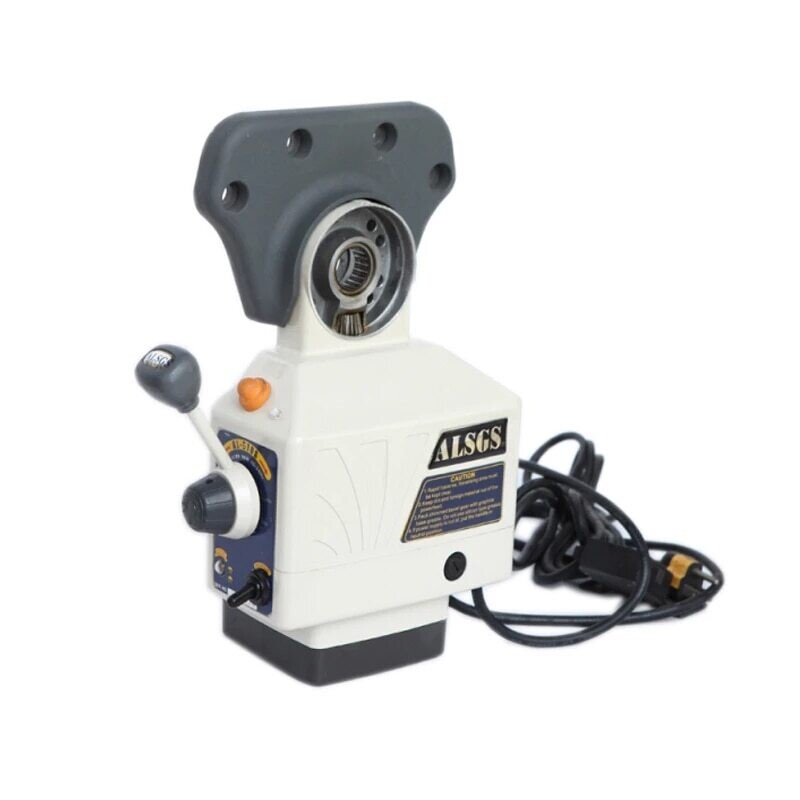

ALSGS - AL-510S (X/Y/Z) Power Feed
+2

ALSGS - AL-510S (X/Y/Z) Power Feed

R0.00
Price incl. VAT (15%) R0.00
Type
In stock
1
Share this product with your friends
ShareSharePin it
ALSGS - AL-510S (X/Y/Z) Power Feed
Product Details
Brand: ALSGS

This is a classic model attached to the ball screws of milling machines, drilling machines, and other machine tools to provide an accurate, repeatable feed rate.

AL-510S Series Parameters
Project value AL-510SX AL-510SY AL-510SZ
Input voltage 110V(220V Optional) 110V(220V Optional) 110V(220V Optional)
Power 130w 130w 130w
Maximum torque 650in-lb 650in-lb 650in-lb
Speed range 0-200rpm(CVT) 0-200rpm(CTV) 0-200rpm(CVT)
Plug system American(British European Optional) American(British European Optional) American(British European Optional)
Dimensions
L/W/H
30/22/35cm 30/22/35cm 30/22/35cm
Total weight 7.2Kg 7.2Kg 7.2Kg
Packaging form PVC bag+ Shock foam+carton PVC bag+ Shock foam+carton PVC bag+ Shock foam+carton
Applicable models Milling machine, Drill milling machine, Turret milling machine Milling machine, Drill milling machine, Turret milling machine Milling machine, Drill milling machine, Turret milling machine
Installation position X-axis Y-axis Z-axis

INSTALLATION METHOD

  • AL-510s X (http://www.alsgs.com/xinwen/wenti/73.html?16179689...)
  • AL-510s Y (http://www.alsgs.com/xinwen/wenti/74.html?16179689...)
  • AL-510s Z (http://www.alsgs.com/xinwen/wenti/75.html?16179689...)
Show More
You May Also Like
ALSGS - AL-310S (X/Y/Z) Power Feed
ALSGS - AL-310S (X/Y/Z) Power Feed
ALSGS - AL-310S (X/Y/Z) Power Feed

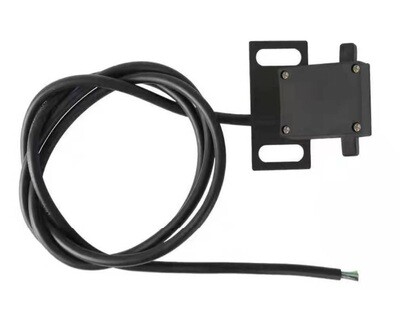

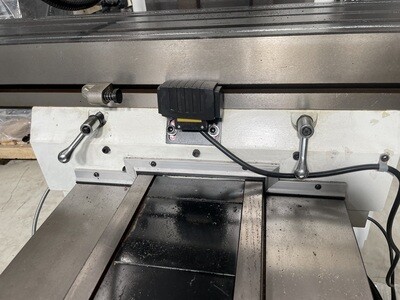

ALSGS Limit Switch
