• Easy Gain Tuning with Automatic Inertia Estimating Function
• Encoder with bi·directional high-speed serial communication
• Sufficient input/output contacts and various functions
• Easy Setting Built·in Panel Operator
• Built·in regenerative braking resistance in the drive
• Plug in type power connector
• Various homing functions
• Easy firmware upgrade
Product Benefits
• High Performance and Open Network
• L7 Drive with Built·in EtherCAT Interface
• Various operation modes
• Safe torque off function
• Easy to Use
• High speed position capture function
• Adjustment function linked with XGT series from LSIS
• Have conformity of EtherCAT device
• Provide gain tuning tools an commissioning packages
Inputs & Outputs
• 10 Digital Inputs /5 Digital Outputs*
• 2 Analog Inputs (12 Bit)
• 2 Analog Outputs (12 Bit)

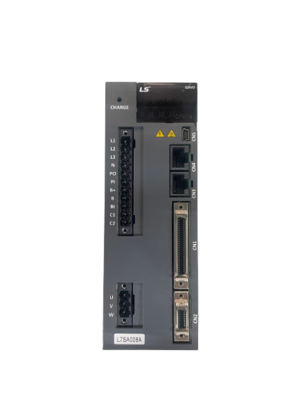

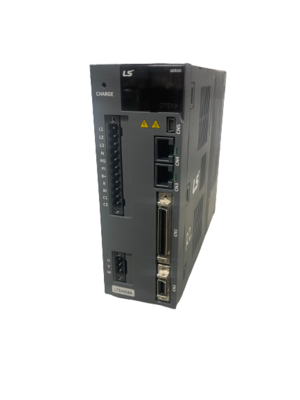

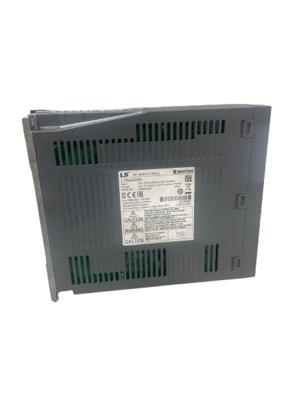

Product Specifications
Power | 800W |
Series | L7S |
Input Supply Voltage | 3 Phase 200 ~ 230 V AC(-15% ~ +10%), 50 ~ 60[Hz] |
Control Supply Voltage | 1 Phase 200 ~ 230 V AC(-15% ~ +10%), 50 ~ 60[Hz] |
Output Current Rating | 5.2A |
Peak Current | 15.6A |
Encoder Type | Quad. Type Incremental Line Driver 2,000~10,000[P/R] Serial Type 18-bit (100WC M8 only), 19-bit, 20-bit (DD motor only) |
Operating Temperature | 0 °C to +50 °C |
Size | 169 x 58 x 197mm |
Weight | 1.5Kg |
For further Information with regards to Specifications and installations please click on the following link below.
