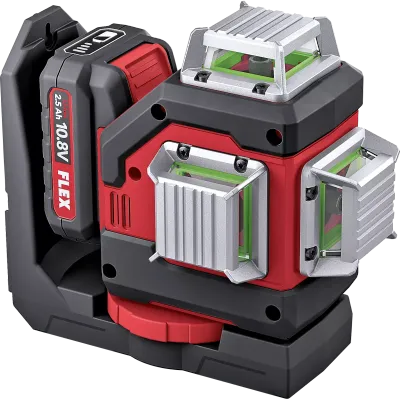

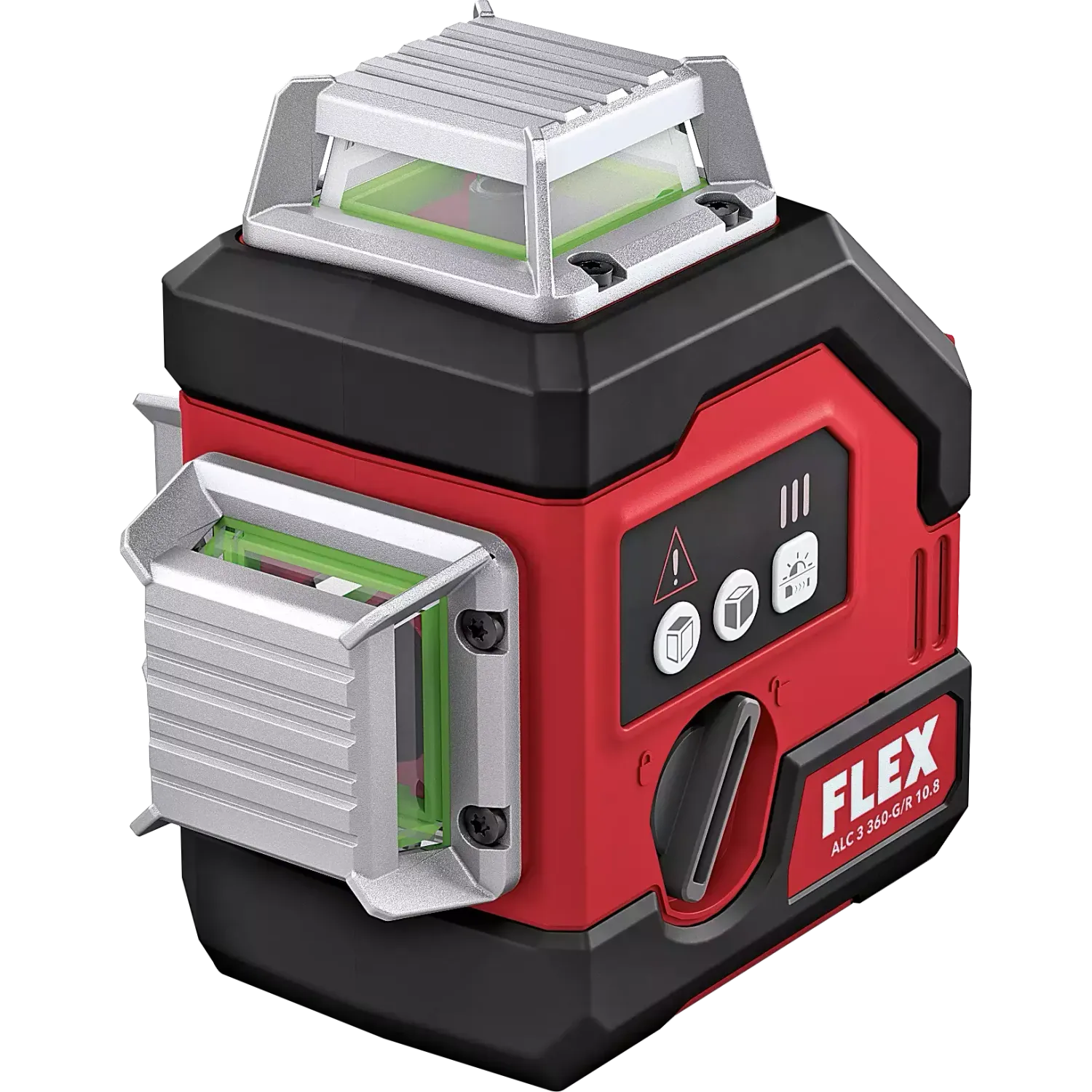

360° Laser Lines: Featuring one horizontal and two vertical 360° laser lines, each independently switchable for versatile operation.
Quick Alignment and Assembly: Achieve rapid alignment and assembly with laser lines positioned at precise 90° angles, facilitating seamless setup in any workspace.
Plumb Function: Benefit from automatic plumb point formation at vertical intersections, ensuring precise alignment every time.
Enhanced Visibility and Precision: Equipped with specially anti-reflective lenses, our laser level delivers clean, highly precise laser lines. The green line image enhances visibility, even in challenging lighting conditions.
Extended Range and Self-Leveling: Experience extended range capabilities of up to 100 meters, expandable to 120 meters with a receiver. Enjoy hassle-free operation with self-leveling functionality and an optical warning signal to prevent exceeding self-leveling limits.
Customizable Brightness and Modes: Tailor your laser level experience with brightness control offering three modes, adaptable to ambient brightness or battery status. Position 1 doubles as a receiver mode for added versatility.

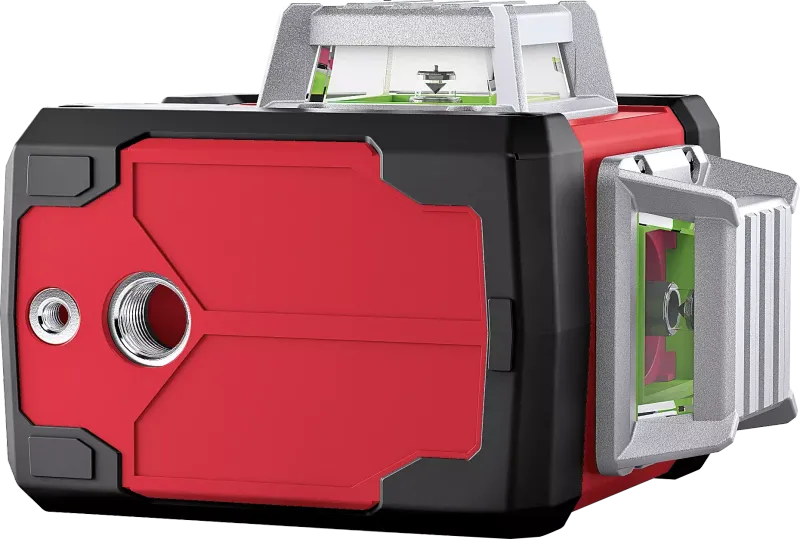

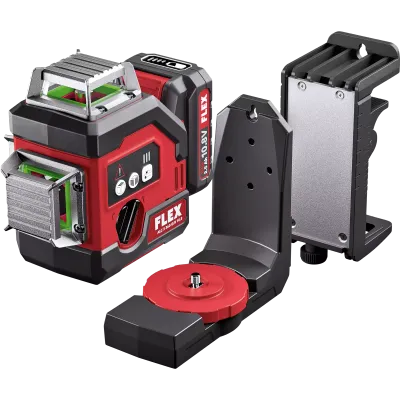

Durable and Versatile Design: Constructed to withstand dust and splash water, our laser level ensures durability in various work environments. The 1/4" and 5/8" thread compatibility makes it suitable for tripod mounting.
Ideal for Interior Design and Construction Sites: Perfect for interior design projects such as straightening doors, windows, and laying floor tiles, as well as a multitude of applications on construction sites.
Compatible with FLEX Battery System: Compatible with all FLEX 10.8 V battery packs, our laser level offers flexibility and convenience for your power source needs.
Technical Specifications:
Number of lines, horizontal | 1 Cont. |
---|---|
Number of lines, vertical | 2 Cont. |
Visible range, horizontal lines | 360 ° |
Visible range, vertical lines | 360 ° |
Laser class | 2 |
Max. operating range | 100 m |
Max. operating range with receiver | 120 m |
Precision | ± 0,3 mm |
Self-levelling range | 4 ° |
Operating time | 12 h |
Temperature range | -10 - +40 °C |
Protection class | IP54 |
Power supply | Battery system |
Battery voltage | 10,8 V |
Battery capacity | 2,5 / 4,0 Ah |
Dimensions WxLxH | 152 x 88 x 130 mm |
Weight without battery pack | 0,8 kg |
