BCS100 - HEIGHT CONTROLLER

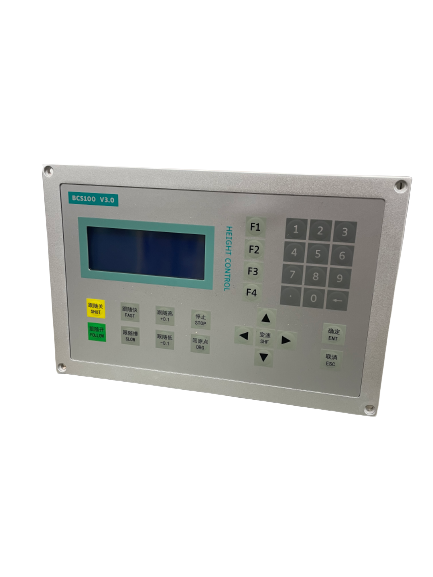

BCS100 Height Controller for Fiber Laser Machine

BCS100 capacitance height controller (hereinafter referred to as BCS100) is a high-performance control device which use closed-loop control method. BCS100 also provides a unique Ethernet communication (TCP / IP protocol) interface, it can easily achieve many functions with CypCut software, such as automatic tracking of height, segmented piercing, progressive piercing, edge seek, leapfrog, arbitrary setting of lift-up height of cutting head.Its response rate is also improved greatly. Especially in servo control aspects, its running speed and accuracy should obviously be better than other similar products, owing to dual closed-loop algorithm of speed and position.

Performance
Sampling rate: 1,000 times per second.
Static measurement accuracy: 0.001 mm.
Dynamic response accuracy: 0.05 mm.
Following range: 0-25 mm.
The signal will not decay with strong capacity of resisting when the length of signal transmission cable is up to 100m.
Support network communications and U disk online upgrade.
Adapt to any cutting head and nozzle.
Support alarm while hitting the board and beyond the edge.
Support edge detection and automatic inspection.
Automatic calibration process, with fast and easy operations.
Support leapfrog and segmented piercing.
Support oscilloscope functions to detect the capacitance in real time.
The comparison of new and old products are shown as below:
