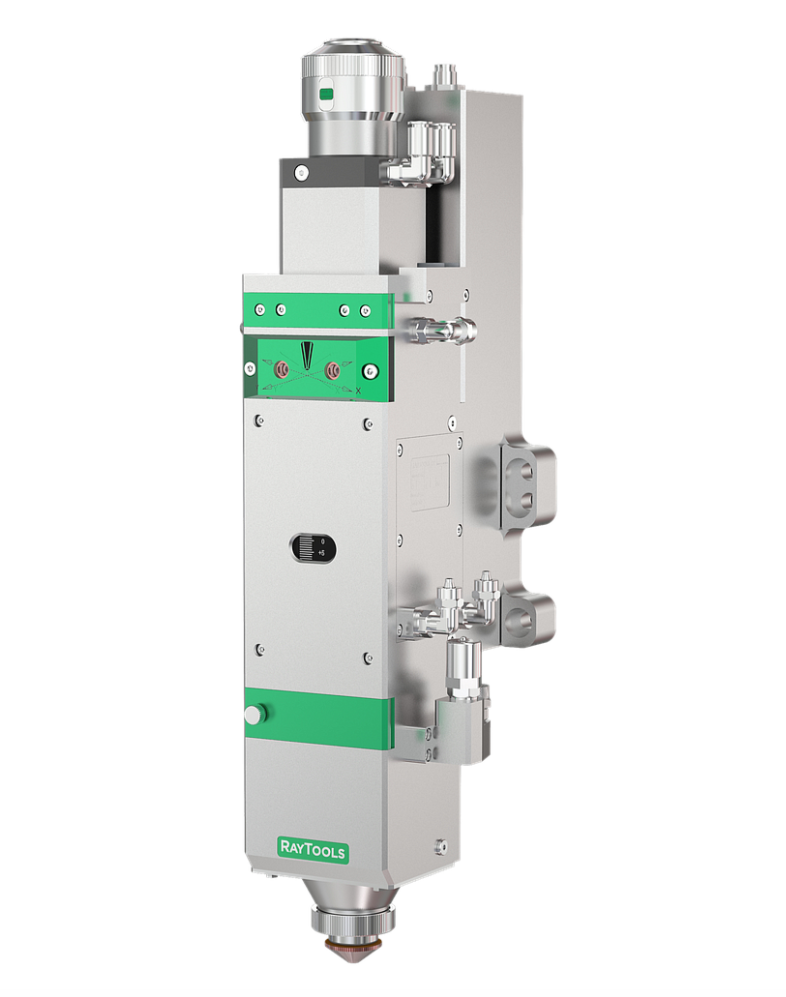

RAYTOOLS - [BM114S(6kW)] - Fiber Cutting Laser Head
Product Details
Weight: 5.60 kg

FEATURES

  • Rated to 6KW optical power at 1μm , with D37 lens group , and more strength to cut thick plate
  • Maximum acceleration of focus lens drive is 10m/s2, maximum speed is 10m/min
  • 35mm clear aperture, effectively reducing stray light interference, guarantee cutting quality and service life
  • Auto focus ranges +10~-14mm, accuracy is 0.05mm
  • Collimation and focusing lenses are both water cooled. Increase air flow cooling for nozzle , effectively protect the nozzle and ceramic body and the lifetime
  • 5.6KG,compact structure, reduce the mechanical requirement
CONFIGURATION
Power Rating ≤6kW
Clear Aperture 35mm
Collimation Protective glass D38mm*1.5mm
Focusing Protective glass D37mm*7mm
Auto Focus Range:+10~-14mm
Acceleration:≤10m/s2
Velocity:≤10m/min
Accuracy:≤50μm
Assist Gas Pressure ≤30bar
Collimator Focal length 100mm
Focusing Focal length 150mm,200mm
