RAYTOOLS - [BM111(0-3.3kW)] - Auto-Focusing Fiber Laser Cutting Head
+6
+5
+4
+3
+2

RAYTOOLS - [BM111(0-3.3kW)] - Auto-Focusing Fiber Laser Cutting Head

R0.00
Price incl. VAT (15%) R0.00
Model
Size
In stock
1
Share this product with your friends
ShareSharePin it
RAYTOOLS - [BM111(0-3.3kW)] - Auto-Focusing Fiber Laser Cutting Head
Product Details
Brand: RayTools

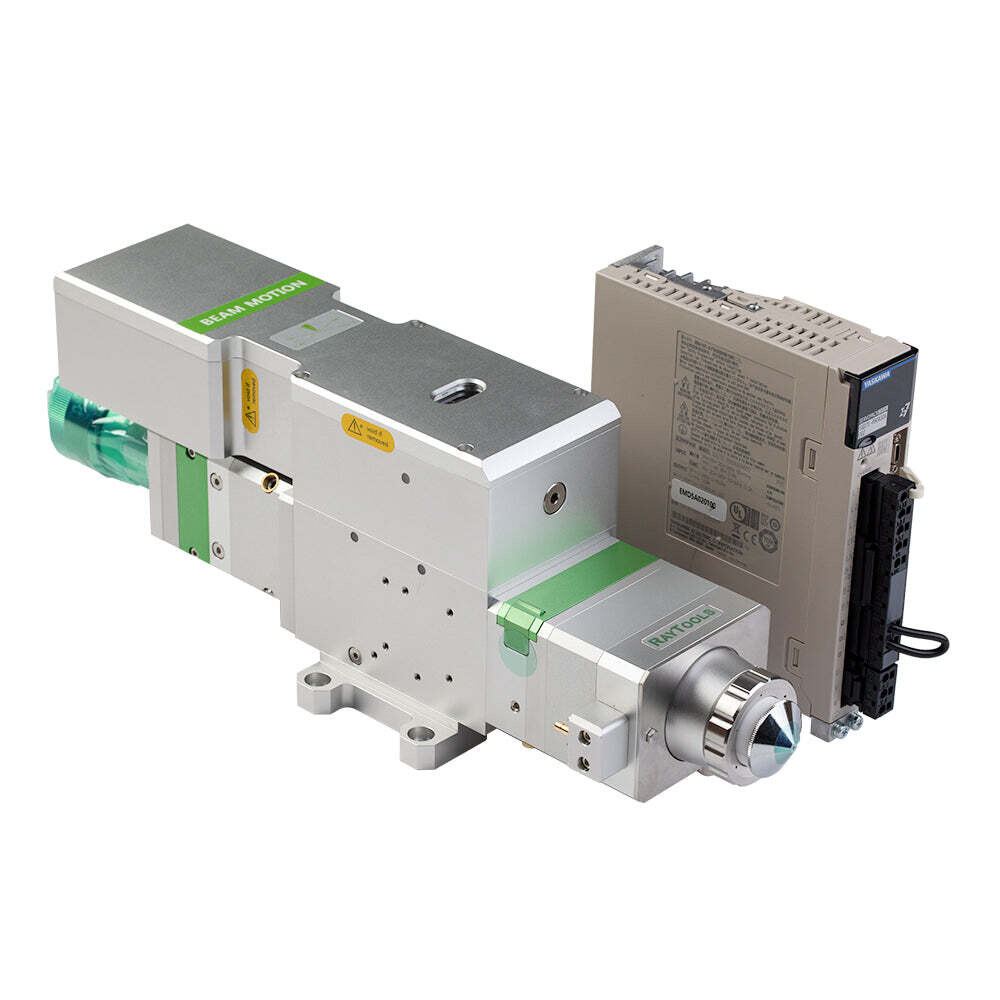

The BM111 series laser heads represent a cutting-edge solution for RAYTOOLS fiber lasers, offering automatic focusing capabilities. Equipped with internal servo motor drive units, these heads employ linear mechanisms to seamlessly adjust the focusing lens position within a range of approximately 22mm. This feature enables users to achieve precise focus positioning for tasks such as rapid perforation of thick plates and automated cutting of varying thicknesses and materials.

Featuring an optimized optical configuration and efficient airflow design, the BM111 series ensures superior performance and reliability. The automatic focusing range spans from +10mm to -12mm, with an impressive adjustment accuracy of 0.05mm, enabling precise control over cutting processes.

Equipped with D30 composite lens groups, these laser heads support fiber powers of up to 3kW, facilitating high-quality cutting operations across a range of materials. Additionally, the maximum acceleration of the focus lens driver reaches 10m/s², with a maximum speed of 10m/min, ensuring efficient and swift operation.

The BM111 series laser heads are compatible with QBH, QD, and other fiber interfaces, allowing seamless integration with various fiber lasers. Furthermore, the convenient drawer-type lens mount simplifies the replacement of protective lenses, streamlining maintenance processes for enhanced user convenience.

With their advanced features and versatile capabilities, the BM111 series laser heads are poised to elevate your cutting experience, delivering exceptional performance and precision for a wide range of applications.

Product Specifications

Power Rating

<3.3KW

Clear Aperture

25mm

Collimating Protective glass

Diameter 24.9mm*1.5mm

Focusing protective glass

Diameter 27.9mm* 4.1mm

Collimating Lens

D30 F100mm

Focusing Lens

D30mm F125mm/ F155mm/F200

Auto focus range

+10mm to 12mm

Assist gas pressure

<30bar
