Lightweight and Handy Design

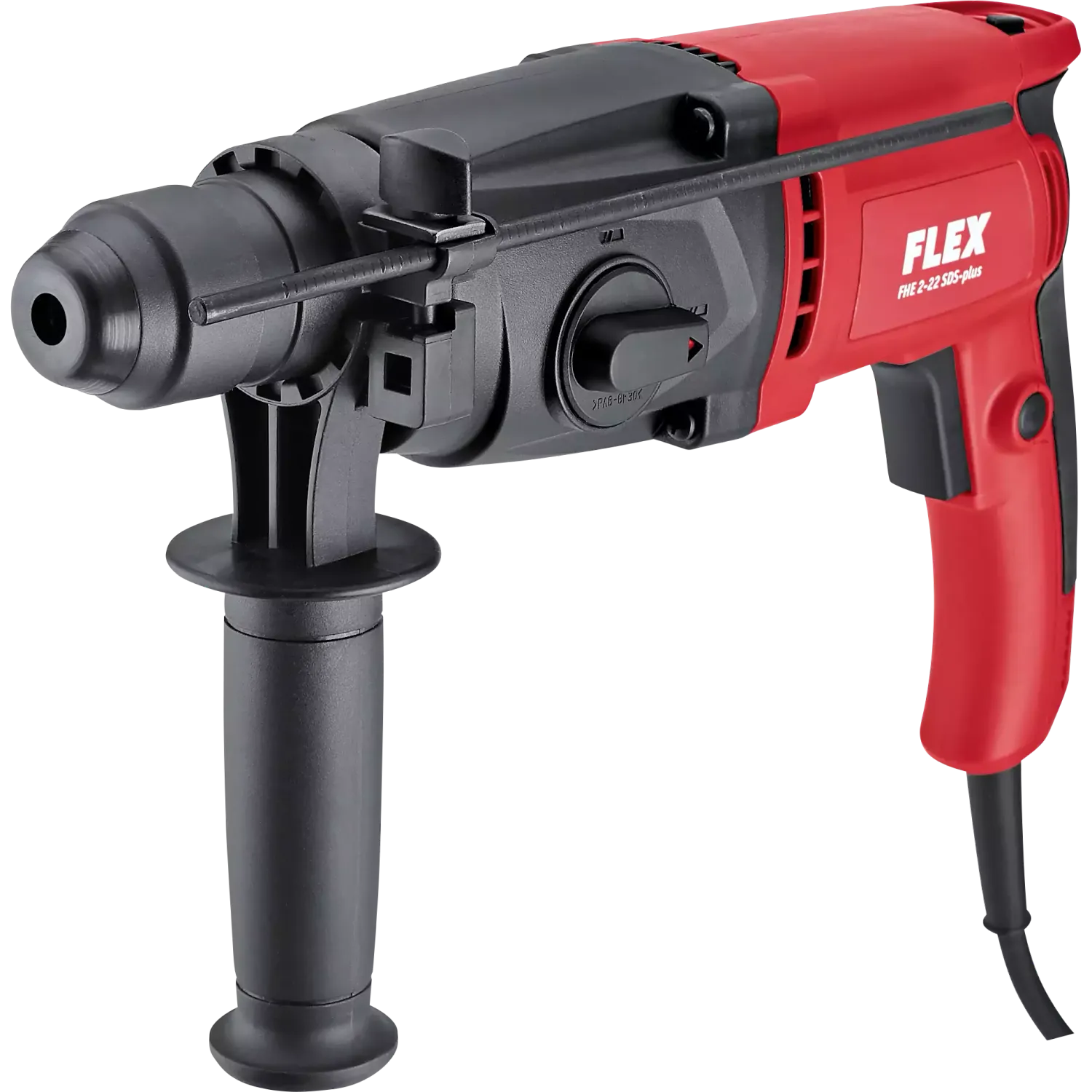

The 710-watt pistol-shaped fixing hammer is both lightweight and easy to handle, making it ideal for extended use without fatigue.
Capable of hammer drilling with a maximum drilling range of up to 22 mm in concrete, it is ideally suited for drilling and hammer drilling, especially for diameters of 4-12 mm in concrete for dowels and anchor attachments.
Features clockwise and anti-clockwise rotation with switchover via a carbon brush reverser, providing almost identical torque in both directions for versatile application.
The depth limit gauge ensures precise drilling, allowing for consistent and accurate results.
Equipped with an accelerator switch with a lock-on function, enabling continuous operation and better control during extended tasks.
Constructed with a robust glass fibre reinforced housing, ensuring durability and long-lasting performance even in demanding environments.
Technical Specifications:
Power consumption | 710 W |
---|---|
Voltage | 230 V |
Frequency | 50/60 Hz |
Tool holder, drill and chisel | SDS-plus |
Max. single impact energy | 2.1 J |
No-load speed | 0 - 1400 rpm |
No-load blows | 0 - 4300 1 rpm |
Max. drilling diameter in concrete | 22 mm |
Max. drilling diameter in wood | 26 mm |
Max. drilling diameter in steel | 13 mm |
Cable length | 4.0 m |
Dimensions WxLxH | 345 x 80 x 200 mm |
Weight | 2.3 kg |
