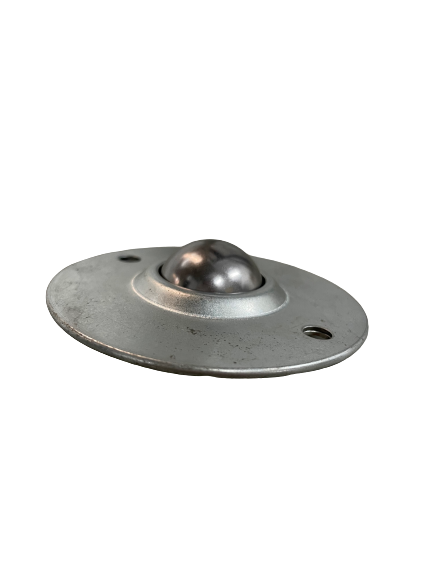

FIXED BALL BEARING TRANSFER UNIT
R0.00
Price incl. VAT (15%) R0.00
In stock
1
FIXED BALL BEARING TRANSFER UNIT
Product Details
This two-hole flange fixed ball-bearing transfer unit is made of high-quality stainless steel and is used to move or transfer loads in all directions. They can be found on most Chinese Hydraulic Shearing Machines and can be used on any other Machine, Conveyer, or any Application that suits the product specifications.
Product Specifications
| Material | Stainless Steel |
| Mounting Type | 2 - Hole Flange |
| Ball Ø | 25mm |
| Max Ø | 72mm |
| Flange Thickness | 3mm |
| Hole Ø | 5.5mm |
| Pitch between 2 holes | 55mm |
| Working Height of Ball | 14mm |
| Ball Exposure Above Outer Ring | 6mm |
