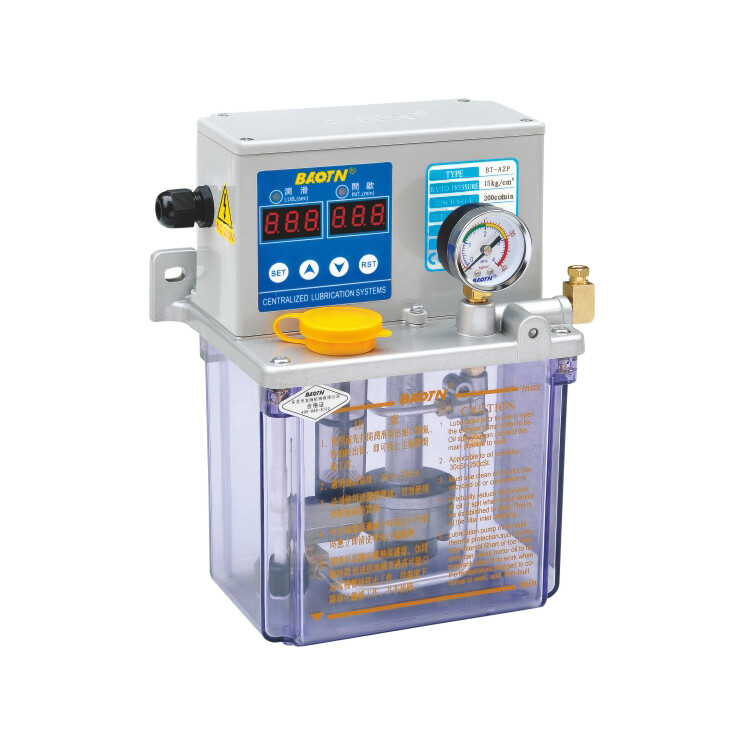

BAOTN - [BTA-A2P2-226] - Thin oil lubrication pump with Digital Display

• Quantify the lubrication of each lubrication point.
• Provided with liquid level switch.
• Provided with pressure switch (optional).
• With overheating protection, the motor is durable
• The pumps have two layers of filters to make the oil passages smoother.

Product Specifications

Product Features

1. Liquid level switch and pressure switch (optional) are provided. When oil volume or pressure is insufficient, the abnormal signal is output.
2. The panel indicator light indicates the power and lubrication status of the oil injection mold.
3. The system is provided with a FEED key, and compulsory lubrication is applied.
4. Time setting: single maximum lubrication duration≤2min, and intermittent time shall be 5 times the lubricating time.
5. The motor is provided with self-protection to prevent high temperature and overload of the motor.
6. The volumetric system is provided with a decompression device and shall be used with BT/BF/BC distributor.
7. Overflow valve is provided to prevent damage by the oil injector and pipeline.
8. Internal fuse is provided to prevent the IC board and motor damaged by a short circuit.
