2-WAY SWITCH PANEL - [L&R]
+4
+3
+2

2-WAY SWITCH PANEL - [L&R]

R0.00
Price incl. VAT (15%) R0.00
In stock
1
Share this product with your friends
ShareSharePin it

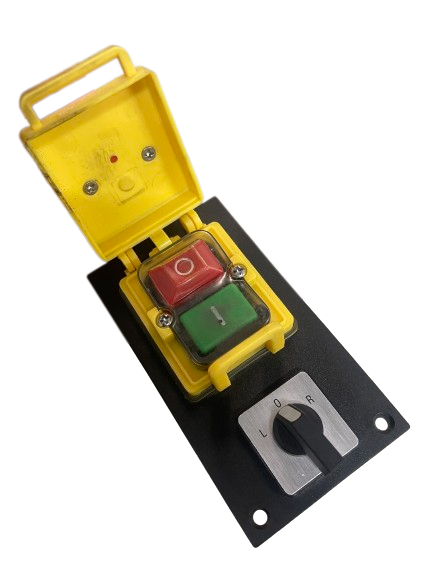

2-WAY SWITCH PANEL - [L&R]
Product Details

KEDU - (KJD18) 7 PIN Waterproof Electromagnetic Switch with (ZH-A) 3 position Rotary switch.

This 2-way Switch Panel is made of high-strength flame retardant engineering material and is extremely easy to install. This Panel of switches will suit a Maxi Drill Press and most other Chinese Drill Press Machines with the right dimensions to suit.

[KJD18] - Specifications

Material Plastic, Silver Plated, Brass
Current Rating 15A
Operating Voltage 400V
IP Protection Rating IP54
  • Environmentally friendly material: high-strength flame retardant plastic, silver plated valve clamp, internal high-quality brass coil, all parts meet EU RoHS environmental standards.
  • Special function: the switch KJD18 has the function waterproof and dustproof, but also the function of power failure and Undervoltage protection.

[ZH-A] - Specifications

Material Plastic, Metal
Current Rating 12A
Operating Voltage 125V/250V
  • Voltage / Current: 125V/18A 250V/12A 240-440V/3HP 400V/16(10)A
  • Features: ZH-A with lock easy to install, small volume multi-function compact structure, good insulation flexible operation safe and reliable and long service life
  • .Material: High-strength flame retardant environmentally friendly engineering material.
Show More
You May Also Like

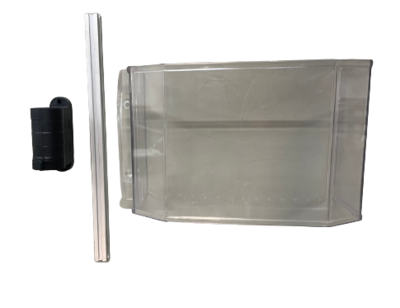

SAFETY COVER - [Z5030/30H]
SAFETY COVER - [Z5030/30H]
SAFETY COVER - [Z5030/30H]

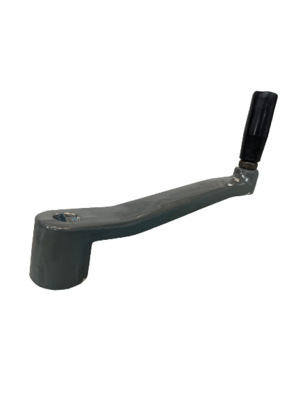

DRILL PRESS - BED HANDLE
DRILL PRESS - BED HANDLE
DRILL PRESS - BED HANDLE

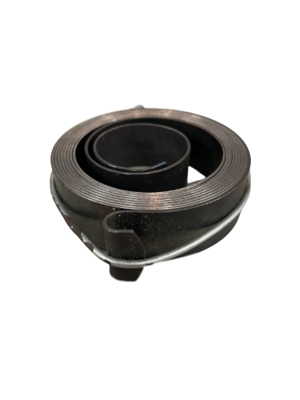

CLOCK SPRING - 25MM [Z5035/3VM TURRET MILL]
CLOCK SPRING - 25MM [Z5035/3VM TURRET MILL]
CLOCK SPRING - 25MM [Z5035/3VM TURRET MILL]

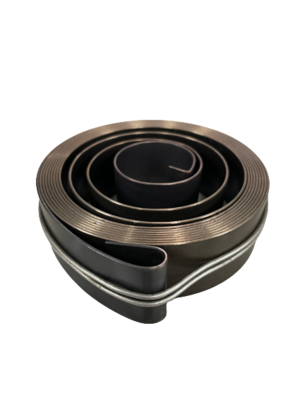

CLOCK SPRING - 20MM [Z5030/30H]
